DUOAIR RGB
Dual Style. Doubled Flow.
The DUOAIR RGB is designed as a versatile, efficient duality, ensuring that thermal performance remains uncompromised whether you prioritize mesh-driven performance or glass-fronted aesthetics. Shifting the PSU cabin to the front creates a true active intake column that allows the bottom fans to draw in vertical airflow to cool up to 410mm GPUs, enhancing high-volume cooling powered by a total of 5 preinstalled fans.
Type
- Interchangeable glass/mesh front panels allow for easy transition between maximum cooling and premium build visibility.
- A front-mounted PSU placement clears space for true vertical intake.
- Perforated bottom side panels significantly enhance lower fan intake.
- Preinstalled 5-fan configuration: 2x140mm ARGB front fans, 1x120mm ARGB rear fan, and 2x120mm bottom fans.
- Premium ZPX/ZPB fans utilize Rifle Bearing and stabilizing rings to reduce turbulence and ensure silent, long-lasting operation.
- Accommodates large 410mm GPUs while maintaining a compact overall footprint.
- Refined rounded edges offer a modern alternative aesthetic and gentler handling.
- Three integrated dust filters, including a stylish quick-slide front filter, provide effortless maintenance and long-term protection.
- A discreetly positioned ARGB light bar adds ambience without disrupting front profile.
Dual Front Panel Versatility
Front panel interchangeability offers the best of both worlds: switch freely between mesh for maximum ventilation and tempered glass for build visibility in a single chassis without needing to commit to one over the other.
Optimised Airflow Pathing
Front PSU placement clears space under bottom fans for a true vertical intake column, creating a full airflow path to cool the GPU.
Porosity-Assisted Intake
The perforated bottom side panel enhances bottom fan air intake, with a recessed groove providing an aesthetic accent.
High-Volume Preinstalled Cooling
The DUOAIR RGB comes with preinstalled 2 x 140mm ARGB PWM front fans, 1 x 120mm ARGB PWM rear fan, and 2x120mm PWM bottom fans.
ZPX/ZPB Fans
Optimized, grooved fan blades are molded with an integrated stabilizing ring, minimizing flex during rotation and reducing turbulence for optimal and silent cooling. Rifle Bearing fans ensure durability and low noise levels.
ZPX 140 ARGB PWM Fan
ZPX 120 ARGB PWM Fan
ZPB 120 PWM Fan
|
|
|
|
|---|---|---|---|
| Pre-installed Fans | Front | Rear | Bottom |
| Product Name | ZPX 140-FB | ZPX 120-FB | ZPB 120-RB |
| Dimensions | 140 x 140 x 25 (mm) | 120 x 120 x 25 (mm) | 120 x 120 x 25 (mm) |
| Fan Speed | (0-1800)±10% RPM | (0-2200)±10% RPM | (0-2200)±10% RPM |
| Air Flow | 72.27CFM | 54.11CFM | 64.8 CFM |
| Air Pressure | 1.94mm H₂O | 2.27mm H₂O | 1.88mm H₂O |
| Acoustic Noise (Max.) | 30.2 dB(A) | 29.2 dB(A) | 34.2 dB(A) |
| Bearing Type | Rifle Bearing | Rifle Bearing | Rifle Bearing |
| Connector & Control | 4 Pin PWM / 3 Pin ARGB | 4 Pin PWM / 3 Pin ARGB | 4 Pin PWM |
Cooling Fan Support
Water Cooling Radiator Support
Maximum Compatibility, Compact Footprint

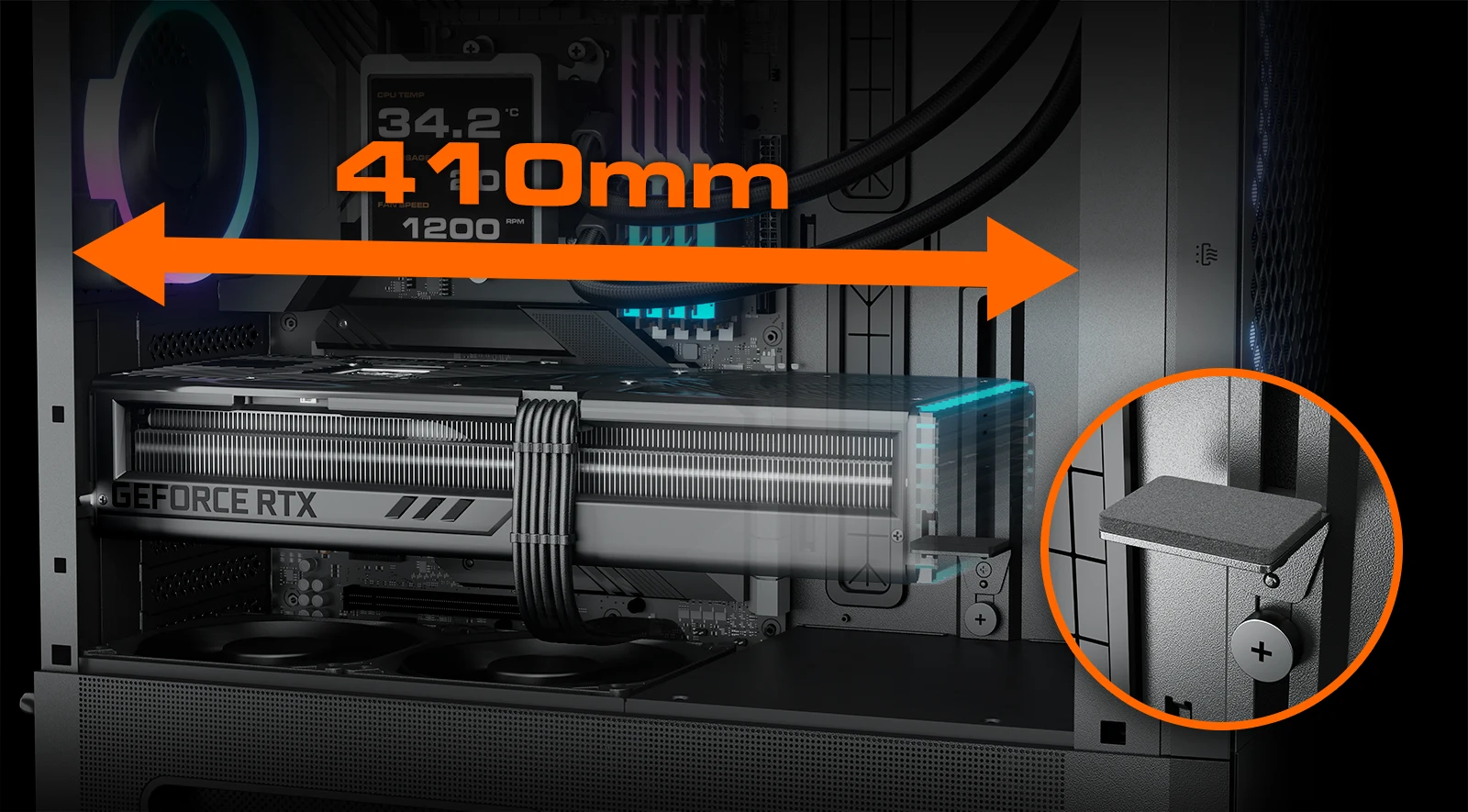

Accommodates 410mm GPUs and 2x120 bottom fans due to front PSU placement, despite its compact overall size reducing space requirements.
Functional and Stylish Dust Filtration

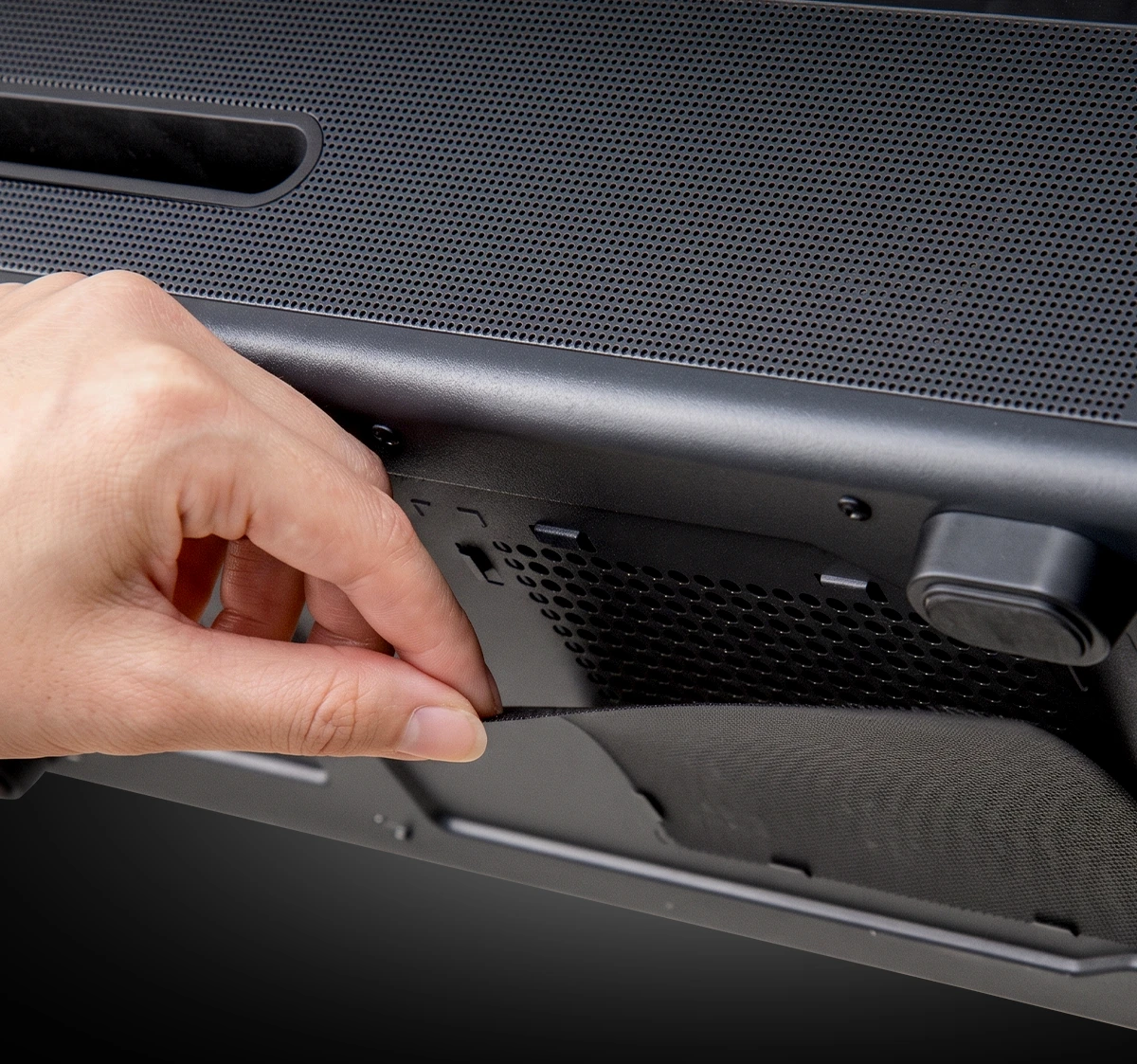

Quick-slide front dust filter offers easy, effortless maintenance with brand detailing, merging quality-of-life functionality with style. A total of 3 dust filters protects against dust.
Refined Exterior Detailing
Rounded edges maintain visual continuity with front panel corners, offering an alternative aesthetic to the sharp lines and hard angles of traditionally designed cases, as well as making the case more gentle on the hands during handling.
Subtle ARGB Illumination
A discreetly-positioned ARGB light bar provides ARGB ambience without disrupting the clean front panel profile.
